LCD KVM Switch                                        Download
LCD Display Keyboard Drawer Touch Pad KVM Switches



1
19" Rackmount LCD KVM Switches
1
The CTL LCD KVM Switch is your idea Network management solution. It combines 8 and 16 port KVM Console, LCD display, keyboard and touchpad into a nearly arranged, the LCD KVM Switch at any height within the rack for maximum comfort and convenience saving precious rack space while offering the most efficient may to control multiple computers. Just slide the keyboard drawer out, flip up the LCD cover and you are ready to go to work.

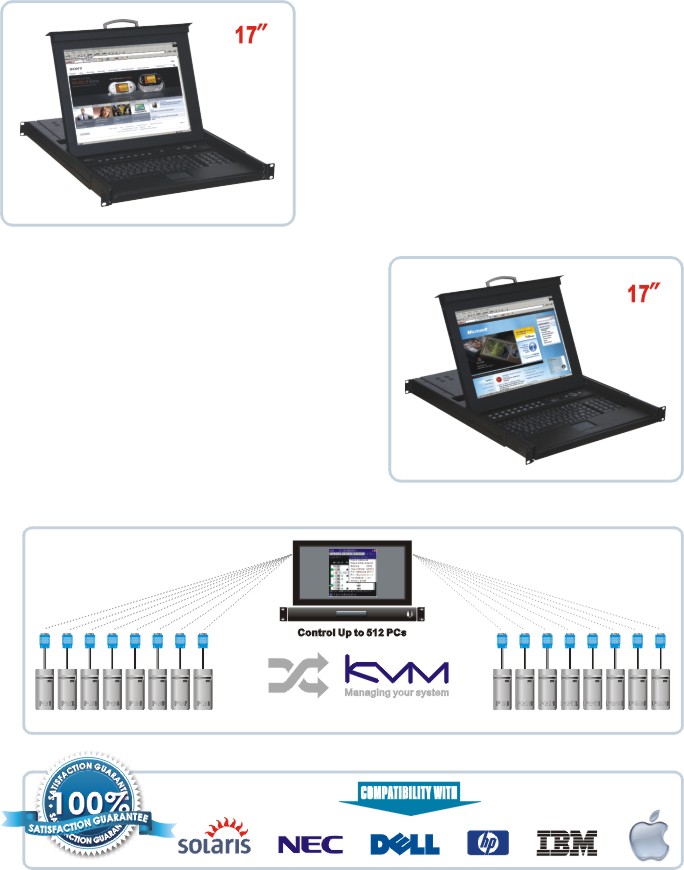

LK117-8

LCD display / keyboard / touch Pad / KVM switch

● Space saving - 1U height slim design 19” rack-mount unit
● 17” TFT LCD screen, Slide away flip-up display
● Build in 8 port KVM Switch
● 105 Key keyboard and touch pad
● Can power off when LCD panel board closed.
● Build in On screen Display (OSD)
● No software required, convenient computer selection via intuitive
● OS Compatibility: DOS / WIN98 / WIN ME / WIN 2K / WIN NT / WIN 2003
                                 WIN XP / WIN VISTA / LINUX.
KVM SWITCHES
● Space saving - 1U height slim design 19”rack-mount unit.
● Single console control up to 4 computers.
● Build in On screen Display (OSD)
● Auto Scan feature for monitoring user selected computers.
● PS/2 mouse emulation provided for system boot up.
● No software required, convenient computer selection via intuitive.
● OS Compatibility: DOS / WIN98 / WIN ME / WIN 2K / WIN NT /
                                 WIN 2003/WIN XP / WIN VISTA / LINUX.

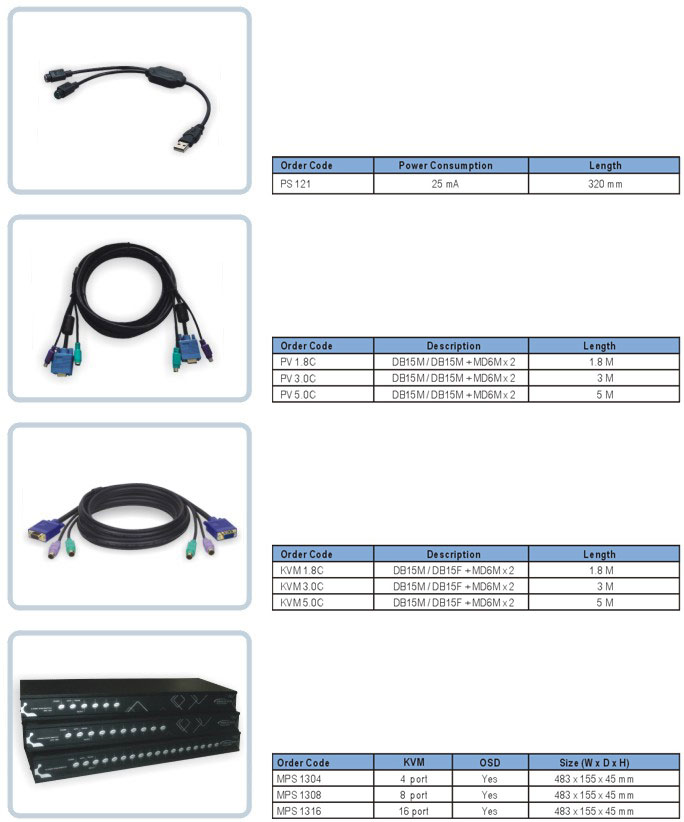

KVM CABLE (DB15M / DB15F)

● Connectors: PS/2 Style
● Keyboard Connectors: 6 DIN Male (both ends)
● Mouse Connectors: 6 DIN Male ( both ends)
● Video connectors: High Density DB15 Male to PCs, High
● Density DB15 Female to KVM Switch
KVM CABLE (DB15M / DB15M)

● Connectors: PS/2 Style
● Keyboard Connectors: 6 DIN Male (both ends)
● Mouse Connectors: 6 DIN Male ( both ends)
● Video connectors: High Density DB15 Male to PCs, High Density DB15 Male to
      KVM Switch
USB TO PS/2 ADAPTOR

● The USB to PS/2 Adaptor allows you to link two PS/2 devices, such as a
    keyboard and mouse, to a single USB port on your computer.
● The USB to PS/2 Adaptor lets you easily connect a full-size PS/2 keyboard and
     mouse to your notebook or desktop computer. Two devices can be used
     simultaneously, and you can plug and unplug devices without rebooting.
LK117-16

LCD display / keyboard / touch Pad / KVM switch

● Space saving - 1U height slim design 19” rack-mount unit
● 17” TFT LCD screen, Slide away flip-up display
● Build in 16 port KVM Switch
● 105 Key keyboard and touch pad
● Can power off when LCD panel board closed.
● Build in On screen Display (OSD)
● No software required, convenient computer selection via intuitive
● OS Compatibility: DOS / WIN98 / WIN ME / WIN 2K / WIN NT / WIN 2003
                                 WIN XP / WIN VISTA / LINUX.

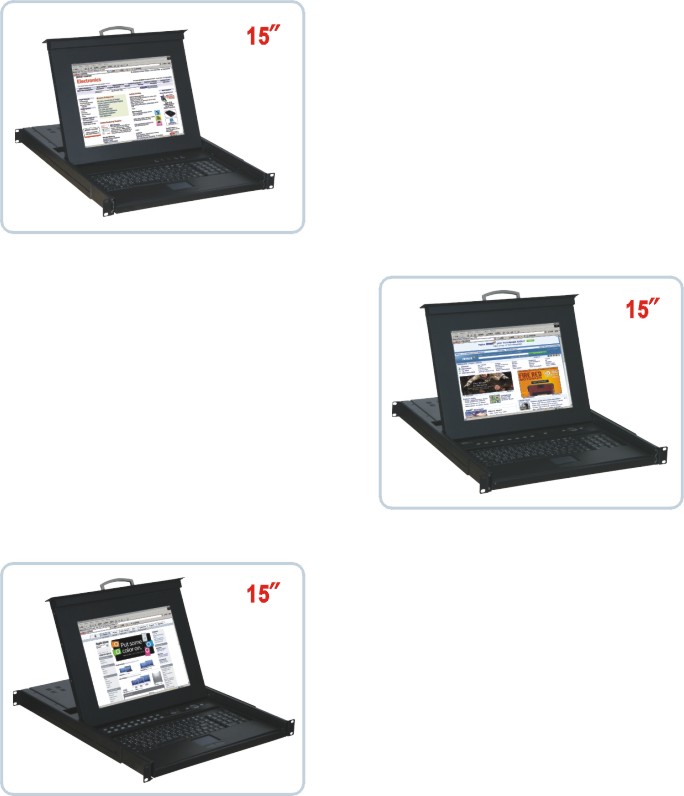

LK115-16

LCD display / keyboard / touch Pad / KVM switch

● Space saving - 1U height slim design 19” rack-mount unit
● 15” TFT LCD screen, Slide away flip-up display
● Build in 16 port KVM Switch
● 105 Key keyboard and touch pad
● Can power off when LCD panel board closed.
● Build in On screen Display (OSD)
● No software required, convenient computer selection via intuitive
● OS Compatibility: DOS / WIN98 / WIN ME / WIN 2K / WIN NT / WIN 2003
                                 WIN XP / WIN VISTA / LINUX.
LK115-8

LCD display / keyboard / touch Pad / KVM switch

● Space saving - 1U height slim design 19” rack-mount unit
● 15” TFT LCD screen, Slide away flip-up display
● Build in 8 port KVM Switch
● 105 Key keyboard and touch pad
● Can power off when LCD panel board closed.
● Build in On screen Display (OSD)
● No software required, convenient computer selection via intuitive
● OS Compatibility: DOS / WIN98 / WIN ME / WIN 2K / WIN NT / WIN 2003
                                 WIN XP / WIN VISTA / LINUX.
LK115-1

LCD display / keyboard / touch Pad

● Space saving - 1U height slim design 19” rack-mount unit
● 15” TFT LCD screen, Slide away flip-up display
● 105 Key keyboard and touch pad
● Can power off when LCD panel board closed.
● Compatible with most PS/2 touch.
● No software required, convenient computer selection via intuitive
● OS Compatibility: DOS / WIN98 / WIN ME / WIN 2K / WIN NT / WIN 2003
                                 WIN XP / WIN VISTA / LINUX.
