C Class was designed to be both flexible and
affordable. When you place your order, you get ( and pay for)
only as many features as you need for your application.
To make it easy for you, C Class is offered in few basic
configurations. One of these units may be sufficient for your
application. If not, choose from the extensive range of CTL
accessories to build the system you require.
Features
■ Supplied fully
assembled and configured with accessories
■ Wide range of
application specific accessories
■ Very strong load
rated to 1000kg
■ Accommodates all
major servers on market

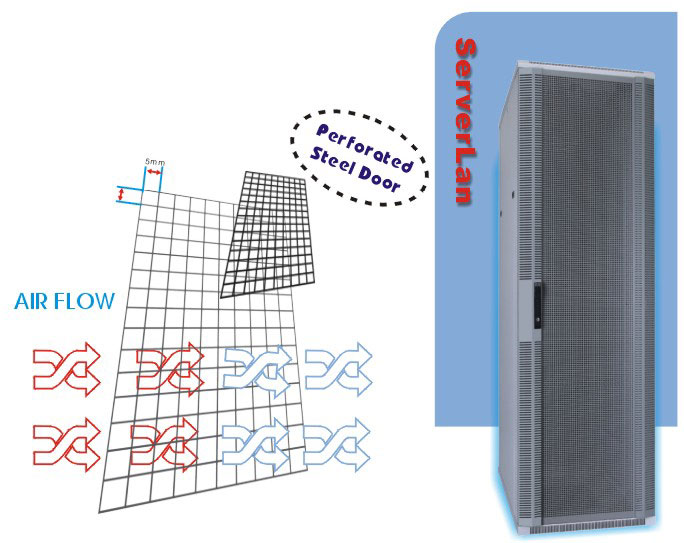

■ Perforated door to
proved excellent thermal management
75 % open area

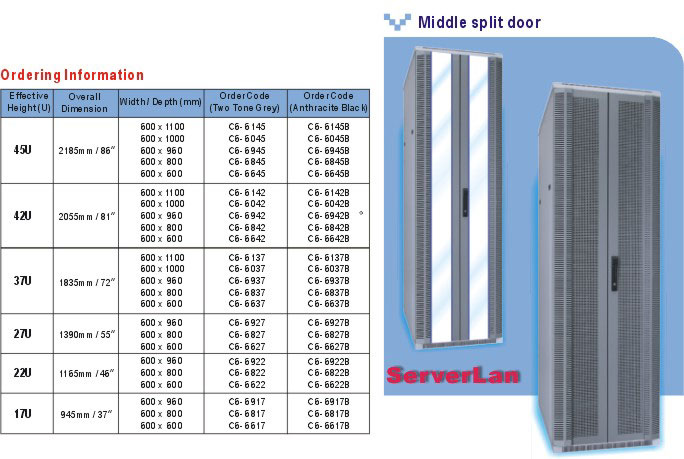

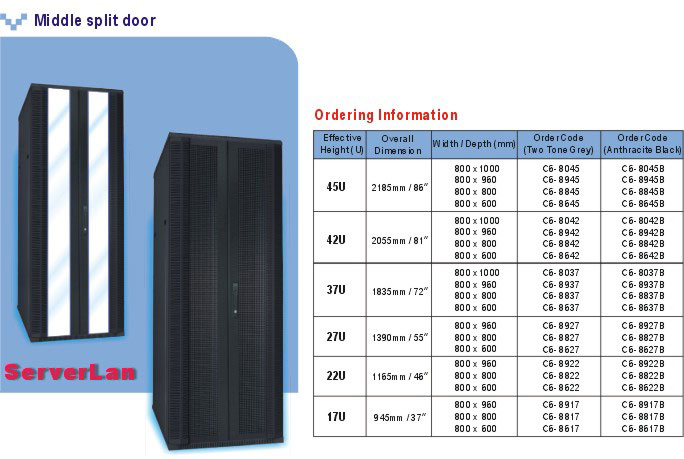

■ Middle split door
options
■ Door options glass,
steel and perforated steel door
■ Fan unit options 2
fans for 600 depth rack, 4 fans for
800mm depth rack, 6 fans for 960 or above depth rack
■ 6 standard height
options 45U, 42U, 37U, 27U, 22U & 17U
■ 6 depth options
1100mm, 1000mm, 960mm, 900mm,
800mm and 600mm
■ 2 width option 600mm
and 800mm
Basic Package Configurations
1. Heavy duty frame, top and base with cable entry ( 1000kg
static load)

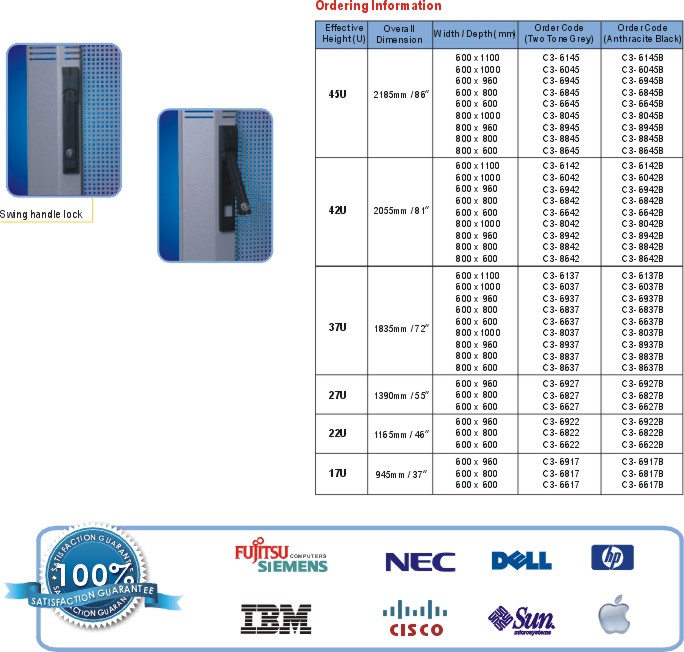

2. Perforated glass front door w/ swing handle lock
3. Perforated steel rear door w/ swing handle lock
4. Quick release side panel w/ clip lock x2
5. Full height adjustable 19” panel mounting angle w/ U marking
x 4
6. Full height adjustable aux. side mount panel x 2 ( 900mm or
above deep rack only)
7. Full height adjustable cable channel x 4 ( 800mm wide rack
only)
8. Top mount fan tray w/ 4 x AC 220V ball bearing fan
9. Full height adjustable cable tray x 2 ( 75mm wide)
10. Heavy duty castor and leveling feet x 4
11. M6 cage nut, fixings and plastic cup washer x 50 |
