Accessories
Download

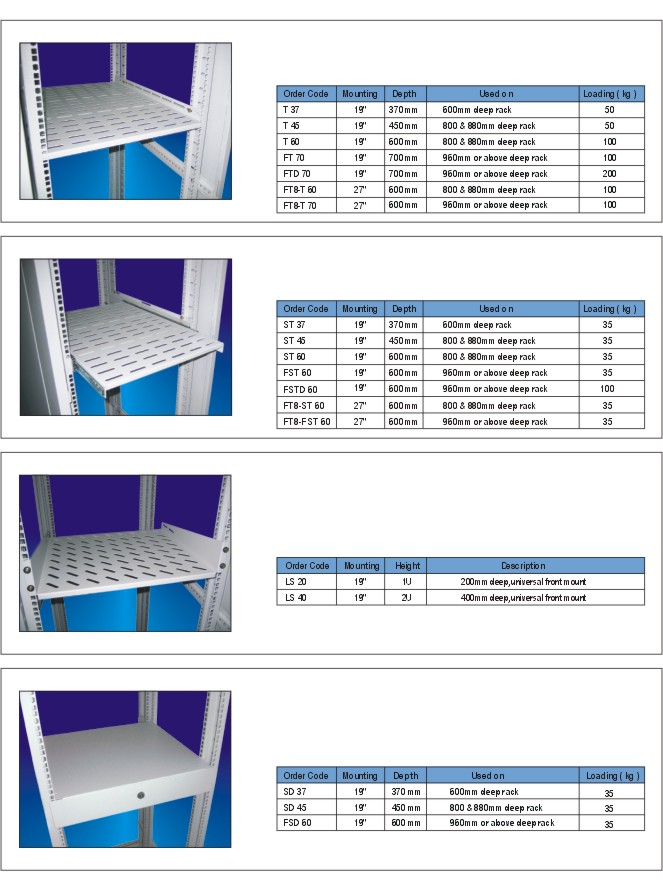

FIXED SHELF
Shelf assembly to 19" panel mounting angles
allow
mixed installation with 19" distribution panels.
Material: 1.2mm Steel
SLIDING SHELF
Shelf assembly to 19" panel mounting angles
allow
mixed installation with 19" distribution panels.
Material: 1.2mm Steel
MODEM SHELF
Support
surface for 19" panel mount, Idea for networking
applications and modem mounting
Material: 1.2mm Steel
Loading: 25kg
2U SLIDING DRAWER UNIT
Sliding Drawer Unit provide a 2U height space
for equipment housing and
lockable for security. Supplied complete with telescopic
slides the have
"hold-in" springs fitted
Material: 1.2mm Steel

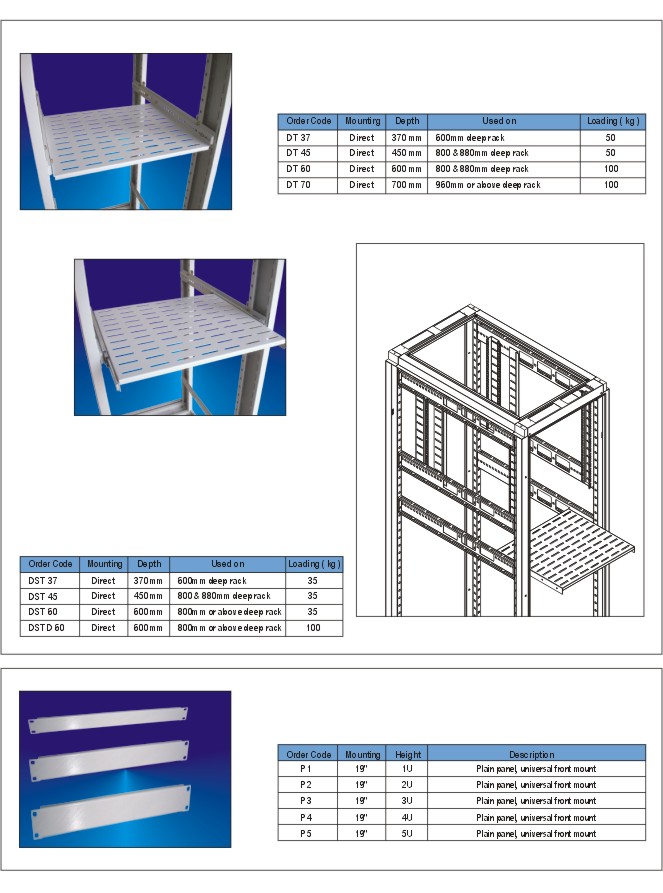

FIXED SHELF ( DIRECT MOUNT )
These shelf are designed for applications where equipment
wider than 19" is
to be mounted or used in conjunction with fixed panel
mounts. As they are
fitted directly to the panel mounting support.
Material: 1.2mm Steel
SLIDING SHELF ( DIRECT MOUNT )
These shelf are designed for applications where equipment
wider than 19" is to be mounted or used in conjunction with
fixed panel mounts. As they are fitted directly to the panel
mounting support.
Material: 1.2mm Steel
19" PLAIN PANEL
To cover reserved or unused locations.
Material: 1.2mm Steel
Installation Layout
Upper: 12U 19" Mounting
Lower: Direct Mounting

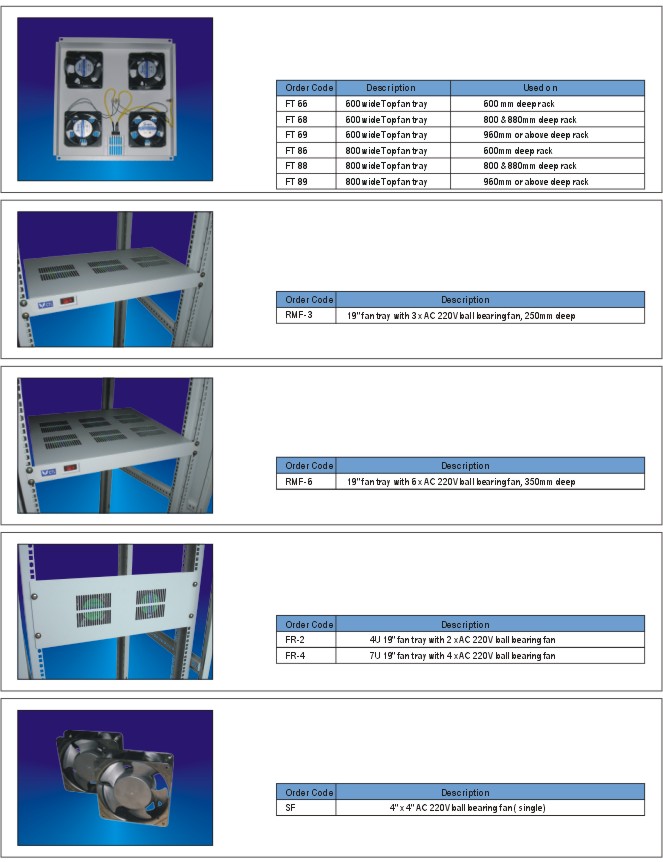

TOP FAN TRAY
Allow fans to be installed in the top cover
600mm deep rack:
maximun of 2 fans
800 & 880mm deep rack : maximun of 4 fans
960mm or above deep rack: maximun of 6 fans
1U 19" FAN TRAY
Allow up to fans to be installed in the upper frame with any
19" mounting area.
Improved airflow and performance
Improved styling
1U 19" FAN TRAY
Allow up to fans to be installed in the upper frame with any
19" mounting area.
Improved airflow and performance
Improved styling
4U 19" FAN TRAY
Allow up to fans to be installed in the upper frame with any
19" mounting area.
Improved airflow and performance
Improved styling
FAN UNIT
For installation in the fan tray.
Supplied with connection cable and snap-on finger guard.

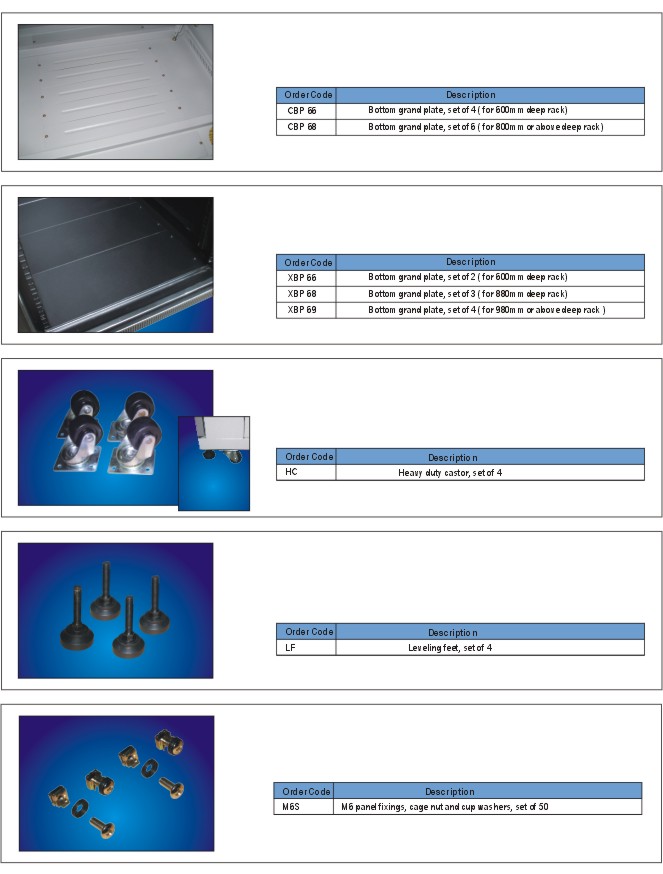

M6 FIXINGS
M6 x 12 Screw, cage nut and plastic cup washers, set of 50
ADJUSTABLE LEVELING FEET
To compensate for uneven floors.
Diameter 45mm
Thread M 12
HEAVY DUTY CASTOR
Castor load 320kg each under average conditions, fitted to
the rack
with bolting on the plinth.
Height: 68mm
BOTTOM GRAND PLATE ( X CLASS )
For covering bottom opening 2 and 4 base plates are required
for covering
bottom opening.
BOTTOM GRAND PLATE ( C CLASS )
For covering bottom opening 4 and 6 base plates are required
for covering
bottom opening.

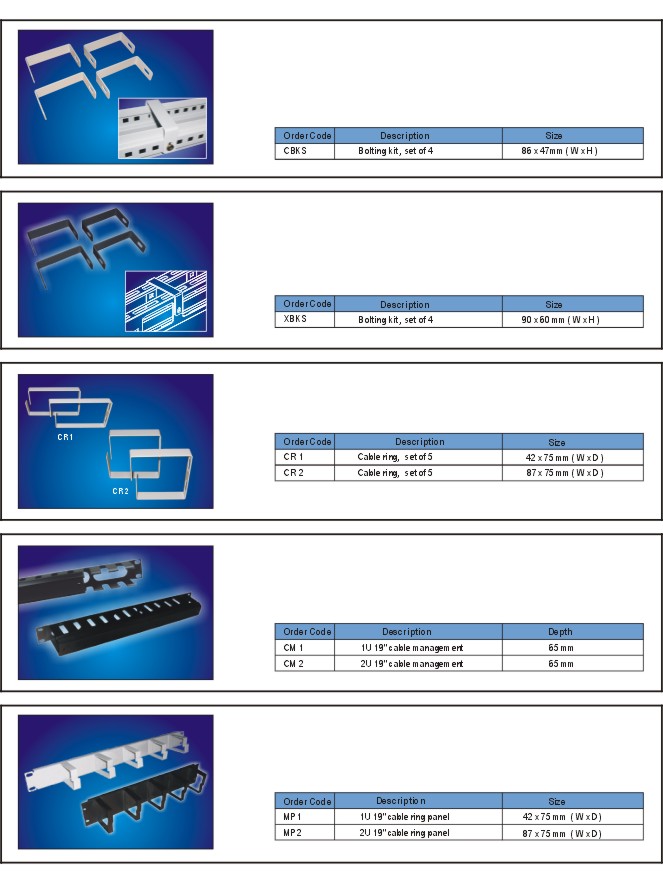

CABLE RING PANEL
For routing cables and wires neatly on the 19" plane
Eupipped with 5 steel cable ring.
Material: 1.2mm Steel
CABLE MANAGEMENT
For routing cables and wires neatly on the 19" plane
Material: 1.2mm Steel
CABLE RING
For tidy management of cable bundles
BOLTING KIT ( X CLASS )
Assembly parts for bolting of two cabinet frames.
The protection level remains unaffected.
When assembled in rows.
Side panel are not between the cabinets.
BOLTING KIT ( C CLASS )
Assembly parts for bolting of two cabinet frames.
The protection level remains unaffected.
When assembled in rows.
Side panel are not between the cabinets.

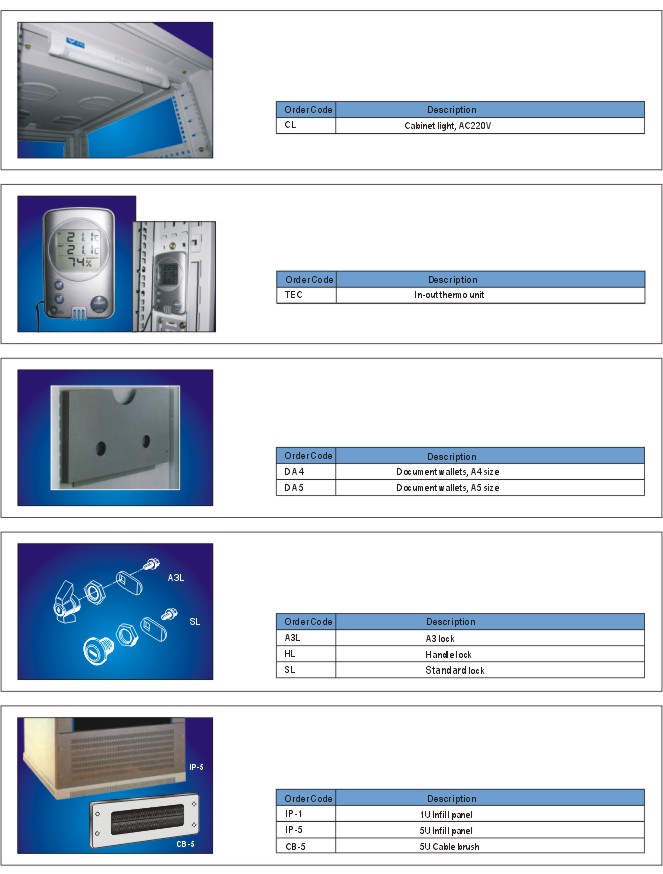

INFILL PANEL AND CABLE BRUSH
These panels have a nominal size of 1U and 5U.
For example, 5u panel plus 37U door would fit a 42U rack.
Cable brush panel for bulk cable access using.
CABINET LIGHT
Provides excellent visibility.
Plastic case with fluorescent lamp and switch.

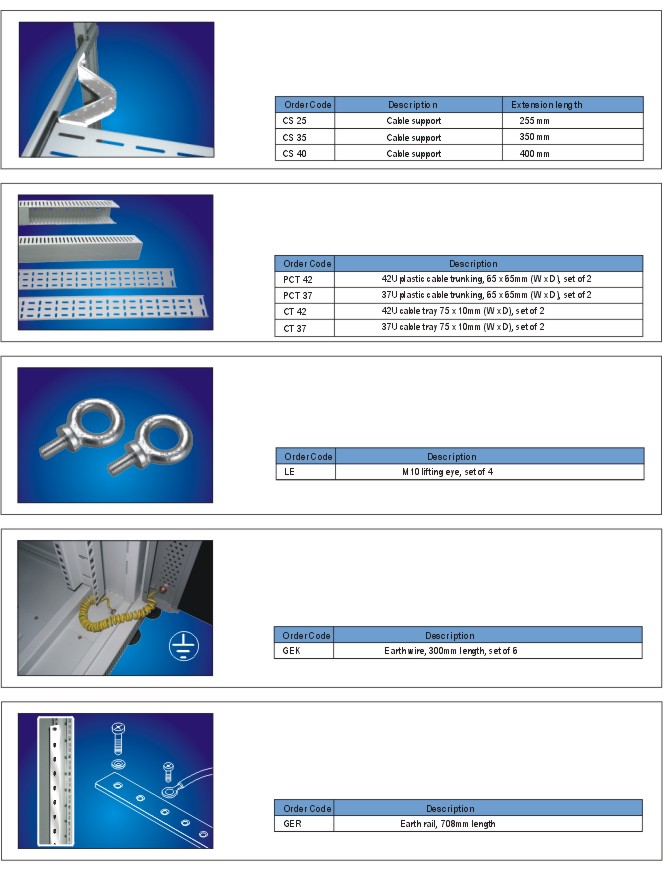

CABLE TRAY / CABLE TRUNKING
For assembling
to cabinet panel mounting angles
to universal mounting rail system
CABLE SUPPORT
For shelves with telescopic slides. Automatically guides
cables on telescopic
frames and shelves. May be mounted directly to cabinet
uprights. Cable my
be secured using cable ties.
Steel: 1.2mm
THERMO
Min-Max Temperature and Relative Humidity Memory.
LOCKS
A3 lock ( use on front and rear door )
Handle lock ( use on front and rear door )
Standard lock ( use on side panel )
DOCUMENT WALLETS
For storage of documents and circuit diagrams.
It is available in A5 and A 4 size
M10 LIFTING EYE
For lifting network cabinet. For cabinets with sealed or
raised top covers.
GND / EARTHING KIT
The GND / earthing provide of the cabinet.
and accessories of the cabinet.
Finish: green, yellow.
FLAT GND / EARTHING RAIL
The GND / earthing kit allows for GND/ earthing of cabinet
and
Accessories to VDE specifications. |
~ + 70
