CF Class Open Rack
For the safe accommodation of wiring system and 19" component
with all-round accessibility of installations. Can be used for mobile or
stationary applications. CF open rack , used in conjunction with CTL
accessories, ensure tailor-made solutions with network and laboratory
equipment.

CFT37 - Open Rack Fixed Shelf
370mm Deep, 50kg Loading

	Robust frame for easy, economic networking distribution in closed
	operating areas
	Can be complemented by accessories to provide an easily
	accessible central networking area
	19" mounting dimensions to DIN
	41 494 part 1
	Floor stand or wall-mount option
	Time-saving, cost-cutting assembly
	250 kg Loading

WMK 15 - Wall Mount Kit ( Option )
150mm Deep

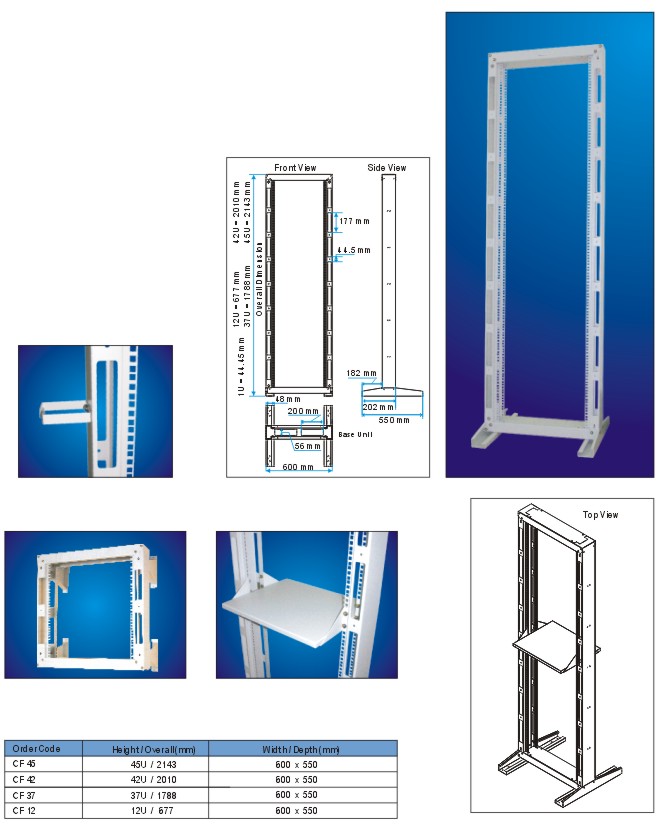

CF Class 42U 600 mm Wide Open Rack

Side Vertical with CR2 Cable Ring

CF Class
Open Rack

Download

CW Class
- Wall Mount Enclosure

Down--Wall Mount Enclosure

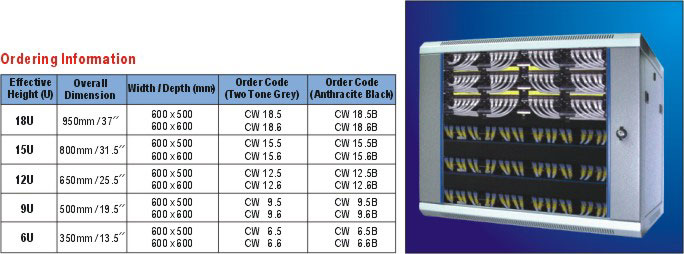

CW Class Wall-Mount Enclosure
CW wall-mounted enclosures are cutting-edge products in enclosure technology. The distinct concepts have one crucial factor in common - convenient access to all installed equipment for assembly and servicing purposes.

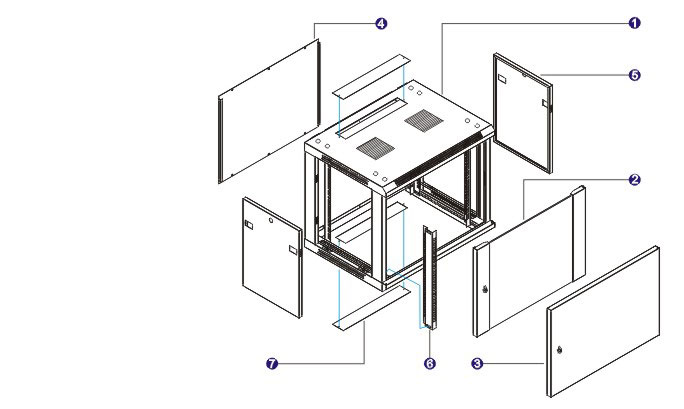

STRUCTURE
1. Main Frame
2. Glass Front Door
3. Steel Front Door
4. Steel Rear Panel
5. Quick Release Side Panel
6. Adjustable 19" Panel Mounting Angle
7. Top and Base Cover

Easy and uninhibited access to all mounting points,thanks to the cover system

Brush strip and combination rail for cable clamping

Security locks

Integral ventilation concept

Time-saving, cost-cutting assembly

Swing Frame (Option)

Fan Unit (Option)

80 kg Loading
